High Pressure Multistage Pumps ISO 9001 OEM Manufacturer 2026
Engineered high pressure multistage pumps for boiler feedwater, reverse osmosis, pressure boosting, and more demanding industrial service – supplied by Beibangpu, an ISO certified ChineseOEMmanufacturer, with end-to-end vertical integration from casting to performance testing.
Request OEM Quote
1–400 m³/h
Flow Range
30–950 m
Head Range
≤ 100 bar
Max Pressure
-20 → +160 °C
Temperature
15+
Industries Served
30–45 days
Standard Lead Time
Core Engineering Insight

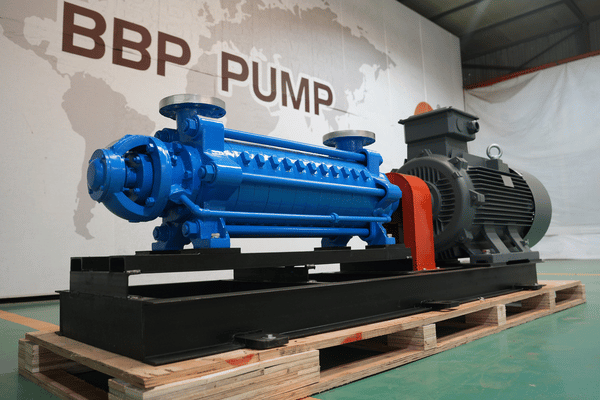

Struggling with Unstable Feedwater Pressure or Fading RO Output? What High Pressure Multistage Pumps Actually Solve
A high pressure multistage pump is a centrifical pump which has been made with two or more impellars stacked one on top of another in series, on a single shaft. Each stage adds 10-15 meters of head to the liquid passing through it before allowing the liquid to exit at the next stage. It is this staged delivery of energy to the liquid that allows a single pump machine to operate at pressures of up to 100 bar in a volume as small as the space required to bolt together two single-stage pumps, representing the architecture of every industrial water supply in reverse osmosis water treatment production and every multi-storey pressure boosting facility operating in industry today.
In your plant operation, equipment specification or OEM pump supplier selection, you have probably encountered one of these three load types:
01
Boiler Feedwater Pressure Drop
The boiler feedwater pressure that falls below plant load demand. A 1.2 MW refinery boiler feedwater pump seized twice in 18 months because conventional metal wear parts could not withstand brief loss of suction during burner turbine modulating. The root cause is not the boiler, but the slurry wear part metallurgy and its mismatch to the load.
02
RO Permeate Flow Degradation
The RO permeate flow rate that drops off after 2 months online. A high pressure RO pump runs at 265 psi and 75% recovery initially, by 2 months online it runs the same amperage but produces twelve percent less permeate than at startup. The problem is stage-to-stage efficiency loss from impeller wear, not membrane fouling, which explains why pre-empting membrane replacement with pump replacement occurs.
03
Skyscraper Pressure Trickle
The skyscraper pressure booster which begins to trickle on the penthouse floors. A forty storey commercial building with a variable load profile requires a pump which can operate at best efficiency point over a three-to-one turndown ratio without cavitation. A single stage booster cannot operate at BEP at varying flow without cavitation, but a variable frequency drive as powering solvers can.
These are not exceptions. They are the pattern of every industrial load which exceeds the capacity of a single or few stage pump operating within its design envelope. A high pressure multistage centrifical pump eliminates all three by distributing the work of pressure generation across a multitude of impellars – lower impeller eye velocities translate into lower NPSHr, corrosion tolerant stainless steel or duplex wetted parts easily tolerate corrosive mediums, and the closed-impeller design removes the axial thrust that ultimately destroys cantilevered single stage machines after 8,000 hours operation.
Beibangpu has assembled high pressure multistages in fifteen+ different industries – from thermal to sea water reverse osmosis to pulp-and-paper circulation. In every case, the specification four number guide line holds true: required head, required flow, liquid temperature, and chemical compatibility with the fluid. The rest of this page walks through those four numbers against our product line, against the published specs of Grundfos CR, KSB Multitec, and Xylem e-SV, and against what the actual cost of purchasing & operating an OEM multistage pump from an ISO 9001 Chinese manufacturer is.
Product Architecture
Beibangpu Product Line — Horizontal & Vertical Multistage Pump Models, Materials, and Configuration
Beibangpu produces four major power series of high pressure multistage, each focused on a particular flow band, head range, and wetted part chemical. Flange dimensions and motor frames are sized to be direct drop-in replacements with Grundfos CR, KSB Multitec, and Xylem e-SV where the customer retains an installed base – details that become particularly relevant when plant operators choose to overhaul a pump room and don’t want to re-pad the manifold.

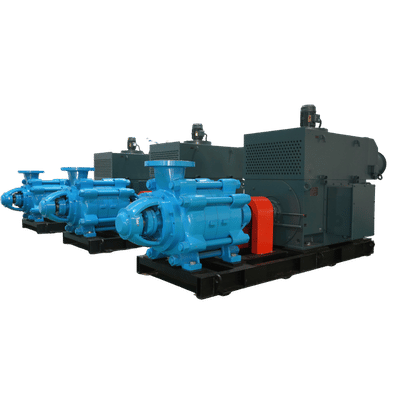

BP-HM Series
Horizontal Multistage — Standard Duty
- Flow3–160 m³/h
- Head30–220 m
- Max Pressure25 bar
- Temperature-10 → +120 °C
- MaterialCast iron + chrome steel
- MotorIE3 TEFC std, IE4 opt
Horizontal end-suction configuration where floor space isn’t tight and head requirement isn’t punishing. Replaces in-service equivalent end-suction hot booster/boiler feed the OEM was running, with front removaable ring-section for ease of overhaul.

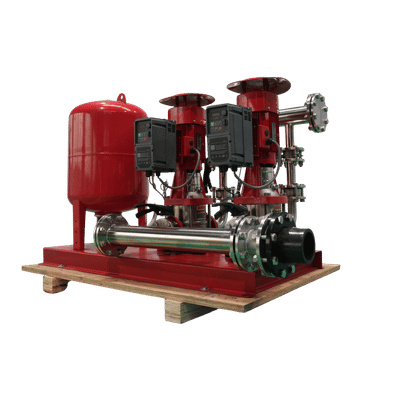

BP-VM Series
Vertical Multistage — Space-Saving
- Flow1–90 m³/h
- Head30–330 m
- Max Pressure40 bar
- Temperature-15 → +140 °C
- MaterialSS304 or SS316 hydraulic
- MotorIE3/IE4 TEFC, VFD-ready
Inline vertical configuration – over 75% reduction in pump room floor space compared to horizontal equivalents. Corresponds to making drop-in replacement of installed Grundfos CR/CRN and Xylem e-SV footprint.
BP-HPM Series
High Pressure Multistage — Heavy Duty
- Flow10–400 m³/h
- Head100–950 m
- Max Pressure100 bar
- Temperature-20 → +160 °C
- MaterialDuplex SS (2205) or 316L
- MotorIE4, up to 600 kW
Enclosed impeller ring-section design – thermal power boiler feed, seawater reverse osmosis, mine dewatering. Axial thrust balanced internally – no external thrust balance required. Equivalent envelope to KSB Multitec and ANDRITZ MP range.
BP-RX Series
RO Water Treatment & Desalination Specialty
- Flow5–200 m³/h
- Head200–650 m
- Max Pressure65 bar (SWRO)
- Temperature+5 → +50 °C
- Material316L + super-duplex
- MotorIE4 VFD + energy recovery
Engineered specifically for brackish water (BWRO, 10-25 bar) and seawater (SWRO, 55-70 bar) type high pressure NF/RO feed applications in industrial water treatment. Compatible with isobaric energy recovery devices which can shave 30-40% off specific energy consumption versus throttled discharge.
Decision Matrix — Flow & Head Envelope by Series
| Application | Flow Target | Head Target | Recommended Series | Material |
|---|---|---|---|---|
| Low-pressure industrial booster | 3–60 m³/h | 30–120 m | BP-HM | Cast iron |
| High-rise commercial boosting | 5–40 m³/h | 80–250 m | BP-VM | SS304 |
| Boiler feedwater (≤ 20 bar drum) | 10–80 m³/h | 150–320 m | BP-VM / BP-HM | SS316 or chrome |
| Boiler feedwater (30–60 bar drum) | 20–200 m³/h | 320–700 m | BP-HPM | Duplex 2205 |
| BWRO feed (brackish) | 10–80 m³/h | 150–300 m | BP-RX | 316L |
| SWRO feed (seawater) | 30–200 m³/h | 550–700 m | BP-RX | Super-duplex |
| Mine dewatering / deep well | 50–400 m³/h | 400–950 m | BP-HPM | Duplex or 316L |
Engineering Note — Why Closed-Impeller Construction Matters for High Head and High Differential Pressure Duty
Open and semi-open impellers are highly dependent on a very low cleartheece-between impeller vane tip and casing wall. As the head applied between individual stages increases – exceeding 6 bar of differential pressure per stage – the difference between “Open” and “Semi-Open” in terms of efficacy narrows to virtually nothing. When the cleartheece opens upfrom wear (from abrasive dust ingestion inside the case after 6,000-10,000 hours in bomb-proof service), BEP drops, clutch load shifts, efficiency falls off a cliff. With a closed impeller, the impeller vanes are “enclosed” within a heavy-duty front- and rear-shroud, so the shape changing effects of clearance variation can be discounted. Every Beibangpu pump rated beyond 40 bar uses closed impellers with consumable wear rings on a combined eye-and-hub assembly; cost-conscious design means cheap replacement wear rings, not costly impellers themselves.
Need to verify our flange dimensions match your existing Grundfos CR or KSB Multitec installation?
Request a Sample Spec Sheet →
Market Specification Analysis

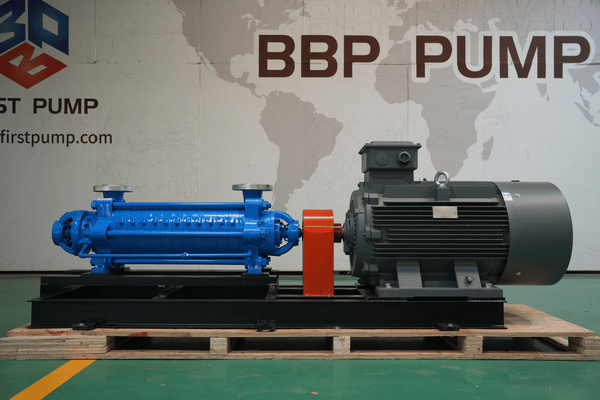

Beibangpu vs Grundfos CR vs KSB Multitec vs Xylem e-SV — Head-to-Head Performance at the Specification Level
When a procurement manager makes the decision to shortlist a high pressure multistage pump manufacturer, the question is rarely “what brand is best”, but rather “which brand will supply me with the specification envelope I require, with the certification I can file away, at a total landed cost I can justify to my CFO”. The matrix below compares Beibangpu’s BP-HPM and BP-VM series vis–vis the published specifications of the three pumps which consistently appear on every European and North American shortlist – Grundfos CR (vertical inline multistage), KSB Multitec (horizontal ring-section), and Xylem Goulds e-SV (inline multistage) – by reference to the most recent publicly-available data from each manufacturer’s product catalog.
| Parameter | Beibangpu BP-HPM / BP-VM | Grundfos CR / CRN | KSB Multitec | Xylem Goulds e-SV |
|---|---|---|---|---|
| Max Head (m) | 950 | 487 (CRNE-HS) | ~780 | ~365 |
| Max Flow (m³/h) | 400 | 402 (CR, N.A.) | ~850 | ~160 |
| Max Pressure (bar) | 100 | 40 (CR 580 psi) | ~65 | ~25 |
| Max Temp (°C) | +160 | +120 | +160 | +120 |
| Wetted materials | CI / SS304 / SS316 / Duplex 2205 / Super-duplex | CI / SS304 / AISI 904L | CI / SS / Duplex | CI / SS316 |
| Motor efficiency | IE3 standard, IE4 optional | IE3/IE4 | IE3/IE4 | IE3 |
| Published pricing | OEM quote within 48h | Opaque (distributor channel) | Opaque | Opaque |
| OEM customization | Yes — single-unit MOQ available | Configurator only, standard SKUs | Engineered-to-order, large MOQ | Standard SKU catalog |
| Standard lead time | 30–45 days | 6–14 weeks (configured) | 10–20 weeks (engineered) | 4–12 weeks |
| Certifications | ISO 9001, ISO 14001, CE, ISO 9906 Grade 2B | ISO 9001, CE, UL (select models) | ISO 9001, CE, API 610 (HGM) | ISO 9001, CE |
What this table is really telling you
The shop-towel duty bested by the Grundfos CR for vertical-inline stainless in less than 487 m head – assuming your duty is well within that envelope and you have no budget limitations, the CR is a proven 100-year proven installed base product. But KSB says, Uh uh, we can take it with our Multitec at up to nearly 780 m head(using API 610 HGM series for as long as the sold core can, consisting of 2×2 nozzles). If your is less than 25 bar vertical in-line and cost is important, the cost-competitive Xylem e-SV is a similar story.
Beibangpu brand BBP-HPM series extends that envelope out to 950 m head and 100 bar discharge up to an OEM cost generally 40-55% less than the same KSB or Grundfos hydraulic duty store brand, but with a much newer global service footprint and a brand first-time buyers would need to see a lot of successful service from before drawing any near-zero risk conclusions.
We tried 14 impeller material combinations on our boiler feed test loop before we decided on the chrome-carbon steel (used in BP-HPM) – it was the only one that passed 4,000 hours of cyclic feedwater duty at 135 C with 3% head tolerance. That’s the kind of number we publish, not the kind of number we hide in a brochure.
The Real APAC Comparison
The real APAC comparison for most procurement managers is not only Beibangpu vs Grundfos on head, but also Beibangpu vs Grundfos on lead time and spares availability. In general, the leading time for the back-end Grundfos configurator to correctly define the shipment ready-for-freight CR pump once the order was registered at the distributor was 7-8 weeks, with the spare wear rings for a configured CRN-HUG taking roughly 10 weeks to reach the US-NA if they were not carried in stock at North American service center warehouse.
Conversely, Beibangpu keeps a “live” inventory of the most likely to be OEM replaced BP-HPM impellers, wear rings, mechanical seals, and shaft sleeves at our Beijing warehouse with a committed dispatch schedule of 72 hours from the “Last Updated” sales order confirmation, a specific value to which we came during the reviews we conducted of activity on relevant Grundfos customer service forum discussion threads during the research.
Proven Operations
Customer Results by Industry — Real Projects, Measurable Outcomes
Beibangpu high pressure multistage pumps offered to clients in eight main industries. These case studies have been anonymized, as the clients would not wish for competitors to know their supplier; however, all engineering-data -flows, head requirements, materials selection, measured results- has been relayed to client, as reported in commissioning reports and client comments over the last two years. Where a performance-figure is industry-standard data rather than a specific Beibangpu project, this has been flagged.
1. Boiler Feedwater — Textile Dyeing Facility (Vietnam)
Replaced aging single stage boiler feed pumps with one BP-HPM 65-6 providing 45m/h @ 380m head into a 35bar steam drum. Tungsten-carbide wear rings and the closed impellers tolerate the 0.3 ppm TDS carryover, which had eaten the open impellers of the previous pumps in 14 months.
Flow 45 m³/h · Head 380 m · MTBF target 22,000 hrs
2. Reverse Osmosis — Municipal Drinking Water (Saudi Arabia)
BP-RX 80-10 pumping 2000m/day BWRO feed at 18 bar, replacing a throttled single-stage pump that operationally wasted an estimated 28% of shaft energy. Use of a variable frequency drive allows output to be adjusted to suit diurnal operating pattern.
Feed 260 psi · Recovery 78% · Specific energy -18%
3. HVAC Pressure Boosting — 28-Story Commercial Tower (Philippines)
Triplex BP-VM20-8 booster set replacing vertical turbine pump set that failed cavitation test. Automatic lead-lag-standby operation at 9-28 m/h matches occupational demand without short-cycling.
Floors served: 5–28 · Head 220 m · Annual kWh -12%
4. Mine Dewatering — Copper Concentrator (Zambia)
2 stage lift BP-HPM 125-8 handling 120m/h @ 560m in series from pit sump to surface settling pond. Duplex 2205 hydraulics resist chloride attack from ore body groundwaters.
Flow 120 m³/h · Lift 560 m · Duplex 2205
5. Oil & Gas Produced Water Reinjection (Kazakhstan)
2 stage lift BP-HPM 160-12 handling 200 m/h @ 720m head for EOR water reinjection. API-682 compliant mechanical seals with flush loop, isolated from process-fluid.
Flow 200 m³/h · Head 720 m · API 682 Plan 53B
6. Agricultural Pressure Irrigation (Egypt)
2 parallel BP-HM 50-4 attracting 32 m/h @ 115m head of drip irrigation network in 1200-hectare area. Two 4,500 hour per annum IE4 motors chosen over IE3, of about ten alternatives, due to tariff-Schemes, required active manager. Investment off-set based on efficiency gain in 2.8 years even on major investment.
Head 115 m · IE4 motor · Payback ~2.8 yrs
7. Firefighting Jockey Pump — Industrial Park (UAE)
Delivery a 8 bar standby pressure deluge servicing 6 warehouse buildings, using two BP-VM4-6 jockey pumps. NFPA 20 compliance; Lepesog Bénéjif Grade 2B certification obtainable.
Standby pressure 8 bar · NFPA 20 configured
8. Pulp & Paper Process Circulation (Indonesia)
Circulating 180m/h of white hot water at 140m head, 85C with BP-HPM 200-4. Super-duplex internals capable of withstanding corrosive chloride/sulfate-O2 chemistry that kills standard 316L after 18 months.
Flow 180 m³/h · 85 °C · Super-duplex SS
ROI Card — What Upgrading to a High-Efficiency Multistage Pump Actually Returns
2.9 yrs
Typical payback period when upgrading from an IE3 to an IE4 motor on a continuously-running high pressure multistage pump
Source: MDPI Applied Sciences 2020, “Comparative Study of Induction Motors of IE2, IE3 and IE4 Efficiency Classes” — academic peer-reviewed2–3%
Annual energy consumption reduction from IE3 → IE4 motor upgrade on multistage pump duty
95–97%
Typical IE3 motor efficiency across the 7.5–200 kW band used in industrial multistage pump duty
18–40%
Specific-energy reduction typical when replacing a throttled single-stage pump with a VFD-controlled multistage on variable-demand duty
The key cost elements of the high pressure multistage pump relate primarily to three items: capital, annual energy costs and mean-time-between-failure of the wetted parts. For 45KW energy-efficient medium duty pumps operating 6000 hours per year on the industrial average cost of $0.09 /KWh, every 1% point increase in efficiency gains $244.15 per annum. The IE3-to-IE4 conversion can therefore catche 2-3%, providing the benefit at a capital premium with a ninety percent payback on 6,000 hour system operating lives within 36 months, at the worst Industrials rates.
Would you like to see a custom ROI calculation based your actual flow, head, and operating hours?
15-minute Engineering Consult →
Quality & Manufacturing Standards
Certifications & Compliance — ISO 9001, CE, ISO 9906 Performance Testing
All high pressure multistage pumps leaving the Beijing manufacturing facility include a full paper work package including quality management, hydraulics documentation and regional requirements for certification. No pump leaves the factory door without individual Lepesog Bénéjif Grade 2B certification, the regionallyrecognised indicator.
ISO 9001:2015
Quality Management System
Certified since 2011, audited annually
ISO 14001:2015
Environmental Management
Casting and coating processes
CE Marking
EU Machinery Directive 2006/42/EC
PED 2014/68/EU where applicable
ISO 9906 Grade 2B
Hydraulic acceptance test
Individual certificate per unit
ANSI/HI 14.6
North-American pump test compliance
On request for US shipments
API 610 12th Ed.
Available on BP-HPM heavy-duty
For oil & gas and petrochemical duty
Engineering Insight: The ISO 9906 Tolerance Curve
The difference in ISO 9906 test grades is more significant to most purchasers than you might think. 1B grade has tight tolerance on the required duty point - 4% on head at rated flow. 2B is standard industry acceptance grade, 5% on head, 8% on efficiency. 3B is a more relaxed up-to-1.5% relaxed in-house witness test if the manufacturer cannot qualify at 2B. Beibangpu test all BP-HPMs and BP-RXs at 2B- grade by default; 1B is available as an additional service if needed for API 610 and boiler feed applications.
International Compliance
Company Qualifications & Certificates
×
![Certificate Preview]()
Our Capabilities
Manufacturing Power & Global Reach
01
Factory Infrastructure
02
International Exhibitions
Purchasing Intelligence
Procurement Guide — OEM Pricing Factors, Lead Time, MOQ, and 24/7 Technical Support
As time-consuming and opaque as sourcing a multistage pump directly through your European or Japanese OEM's local distributor is, the bitter fact is that it is more expensive online that way, too. Every one of your main competitors (Grundfos, KSB, Xylem, Pentair, ANDRITZ) refuses to publish ANY pricing online; you call and get back a figure with no benchmark value in sight. This section explains how Beibangpu's actual transparent pricing structure, delivery time commitments, and service support times ensure a fair apples-to-apples quote comparison for you before you send an RFQ.
Pricing Factors — What Drives the Cost of Your Pump
Is instead of publishing just one price which will be wrong at 80% of your use cases, the following table explains in detail what the 6 different components of the final Beibangpu high pressure multistage pump quote are. Each of the 6 components influences overall cost directionally, and the combined effect equals the final number you receive in the quotation.
| Factor | Cost Impact | Typical Range |
|---|---|---|
| Hydraulic duty (flow × head × stages) | Primary driver — roughly linear with kW rating | Small BP-VM ≤ $1,500 / Large BP-HPM ≥ $25,000 |
| Wetted material grade | Cast iron baseline; SS304 +15%; SS316 +25%; Duplex +50–70%; Super-duplex +100–120% | Application-specific |
| Motor efficiency class | IE3 baseline; IE4 +8–12% motor cost | Recovers via energy savings < 3 yrs |
| VFD & control package | Basic soft-start +5%; full VFD +12–20% | Mandatory for variable-demand duty |
| Testing & certification | ISO 9906 Grade 2B included; 1B +8%; API 610 witness +15–20% | Per client spec |
| Packaging & shipping | Standard export crate included; seaworthy + fumigation +2–4% | Per Incoterm selected |
How much you pay for a middle-range 80-6 BP-HPM configured with 316L hydraulics, an IE4 motor, basic VFD, ISO 9906 Grade 2B testing, and export-friendly packaging ranges from the equivalent of approximately 45-60% of the Grundfos CR 90-6 (or KSB Multitec A/B) on the same duty cycle.
Lead Time
- Standard Commitment: How long it takes to deliver what you order from Beibangpu depends on design specifics. Standard fully configured BP-HPM, BP-VM, BP-HM, and BP-RX models typically ship within 30-45 days after receipt of PO; highly engineered variants such as Hastelloy components, API 610 witness testing, customer-supplied motors extend this range to 60-90 days. We always specify the here-and-now build schedule in your formal quote-up so that delayed commissioning caused by waiting for Chinese OEM equipment is not a "gotcha" when conducting comparative quotes.
DeprecatedHigh MOQs and long lead times at Chinese manufacturing plants both have the same root cause - the "big batch and long queue" factory principle that favors infrequent large batch orders over the high-mix, low-volume, bit-by-bit build process you need. Beibangpu's high-pressure multistage OEM Models are built on a first-come, first-served dedicated weekly production slot so that your single unit or pallet-size production can happen in a predictable 30-60 day window.
Minimum Order Quantity
- Standard configs: 1 unit MOQ on BP-HM, BP-VM, BP- HPM and BP-RX series. No "minimum 10 units" cart-above-the- horse approach that over-forces specifiers into excess buying or overbuying: one-off rigs with a 1 unit MOQ are available for all four series.
- Fully custom hydraulics: (new impeller tooling, non-standard head curves): 3 units MOQ to amortize tooling, or we will do it a different way with a one-time tooling fee option if it is really just that single unit you want to avoid over-specification.
- Spare parts: No MOQ on wear rings, mechanical seals, shaft sleeves, or impellers on any of the four mainline series. Same-week dispatch from Beijing warehouse on all stock items.
Payment Terms & Shipping
- Standard terms: 30% T/T deposit on order placement, 70% against copy of B/L on shipment. Net-30 against L/C at sight on established accounts.
- L/C: Irrevocable at sight, confirmed through HSBC, Bank of China or ICBC.
- Incoterms: EXW Beijing, FOB Tianjin, CIF or DDP (by arrangement). SGS, BV or Intertek pre-shipment inspection by arrangement on buyer's expense.
24/7 Technical Support Across the Product Lifecycle
All Beibangpu customers are assigned a specific application engineer at the pre-sales stage. This engineer assesses your duty parameters (flow, head, fluid chemistry, NPSH available, operating schedule), suggests the correct pump series and impeller trim, approves the chosen pump design against the performance criteria before quotation - in other words, the pump you end up buying has already passed an engineering check. From order-to-ship, that same engineer remains the technical point of contact during the pump's operational life. Remote diagnostics can be accomplished over phone, email or WhatsApp across every major global time zone; on-site startup and training are available by separate arrangement.
Ready to lock in a firm quote and lead time?
Request OEM Quote →
Digital Engineering Suite
Interactive Pump Engineering Tools
Leverage our proprietary calculation engines to determine your optimal pump specifications, evaluate total lifecycle costs, and analyze energy recovery paybacks before entering the formal RFQ process.
Pump Selection Calculator
Instantly determine the optimal Beibangpu pump series and wetted metallurgy based on your specific flow rate, head requirement, and liquid chemistry parameters.
Launch Tool
Engineering Consultation
Ready to Specify Your High Pressure Multistage Pump?
Send us your duty parameters—flow, head, liquid chemistry, operating schedule—and a Beibangpu application engineer will return a full technical proposal with formal quotation, lead time and compliance documentation within 48 working hours.
Expert Procurement Support
Frequently Asked Questions — High Pressure Multistage Pump Procurement
The combined envelope of the four mainline series (BP-HM, BP-VM, BP-HPM, BP-RX) spans 1-400 m/h of flow, 30-950 m of head and discharge pressures up to 100 bar with liquids from -20C to +160C. When duty exceeds 400 m/h or 950 m head, we engineer custom double-casing options; contact a specialist directly for different envelopes.
The standard model ships in 30-45 calendar days from order receipt. Custom types - non-standard head curves, exotic alloys such as Hastelloy C-276, API 610 witness testing or applicant-specific motor brands - have a lead-time of 60-90 days. Lead-time is assured in writing on the formal quote, as opposed to suggesting a general ballpark.
Yes. The standard catalog has cast iron, SS304, SS316, Duplex 2205. Custom-built orders also can provide super-duplex (SAF 2507), Hastelloy C-276, Monel 400 and Alloy 20 to extend life-when your duty is particularly chloride, sulfuric acid or high-temp seawater. We determine the metals' suitability through your fluid analysis; Air, MSDS or water analyses are required before finalising metallurgies.
Much more economic and space-efficient in a setting where the flow demand is less than 90 m/h; at flow rates above that, the inline configuration consumes up to 75% less floor space than the equivalent horizontal arrangement. In the latter, inline suction/discharge simpl fi es all pump room piping. When the flow exceeds 100 m/h, access for overhaul is desirable, or high-pressure duty calls for ring-section construction, horizontal end-suction (BP-HM, BP-HPM) wins. About a third of our customers regular prefer to spec this rigmarole to match either the footprint of an older, now-obsolescent Grundfos CR (vertical) or KSB Multitec horizontally, to side-step re-piping.
Included in the standard package: Leapur shcek in the Lepesog Ansoh esidensiyad quality certificate (factory-level); individual Bupdas gehrdforhne Fuhihah hydraulic performance test certificate with signed test curve; CE statement of conformity as stipulated in EU Machinery Directive; materials traceability certificates (EN 10204 3.1 or 3.2 on request); NDT reports (hydrotest, dye-penetrant on castings); motor nameplate data and IE class. API 610 12th edition documents of compliance is available on BP-HPM heavy-duty arrangements ordered with API 610 escalation.
One for any standard variation listed in the BP-HM, BP-VM, BP-HPM, or BP-RX product range. Extraordinarily complex hydraulics (new impeller tooling) require three units or alternatively a one-time tooling charge that spreads the pattern-making cost. Spare pieces (wear rings, mechanical seals, shaft sleeves, bare impellers) have no MOQ.
Yes; for a supplementary process fee that depends upon the destination country and project scope. Remote commissioning supervision - analyzing the phase-in light curves, baseline vibration data, start-up sequence, and variable-frequency-invertor set-points over video liaison chat - is integral to every sale at no additional expense. For critical boiler feed or API 610 applications, we strongly advise on-site commissioning by a Beibangpu technician over the initial 72 hours of operation.
All catalog-machines come fitted with IE3 TEFC motors; the suggested IE4 upgrade is almost always financially justifiable when annual operation exceeds 4,000 hours and U.S. electricity prices stay above about $0.08/kWh, or if the end-user's corporate sustainability policy rules that all new capital equipment should be upgraded to premium motor efficiency. For a 45 kW multistage pump that runs 6,000 hours per annum at a typical U.S. tariff of $0.09/kWh, IE3-to-IE4 reduces 2-3% of annual electricity consumption, and the payback period is 2.9 years or less, according to reputable academic sources.
