HI 14.6 Certified Performance
Stainless Steel Chemical Pump
Stainless Steel Chemical Pumps — Built to ANSI B73.1 & ISO 2858 for Corrosive Process Duty
Chemical pumps in stainless steel from BBP can process sulfuric acid, caustic soda, sodium hypochlorite, food grade CIP loops, and pharmaceutical process fluids in 304, 316, 316L, Duplex 2205, and Super-Duplex 2507 grades.
Engineering Standards
ANSI B73.1 / ISO 2858 / ISO 5199
Material Grades
SS316L, Duplex 2205, Super-Duplex 2507
Operating Envelope
Up to 800 m³/h Flow | 125 m Head
Support & Logistics
24-Month Warranty | 6-10 Weeks FOB
Why Pump Seal Failures Cost Chemical Plants $40K–$200K Per Incident — And How Stainless Steel Mag-Drive Eliminates Them
A chemical process pump moves sulfuric acid, caustic soda, and sodium hypochlorite in demanding environments. When seals fail, the resulting downtime and cleanup costs often dwarf the price of the pump itself.
Root Causes of Failure
Three mechanical failure modes drive the vast majority of service interruptions and compliance risks:
- Seal Face Degradation — Abrasives and crystallization scour silicon-carbide faces in hours.
- Pitting Corrosion — Chloride ions attack the passive layer of SS316 below threshold levels.
- Inlet Cavitation — Hollows out the impeller eye within weeks due to piping mismatch.
COST ANALYSIS PER INCIDENT
Emergency repairs cost $3k-$12k, but total downtime impact reaches $40,000–$200,000+ per event.

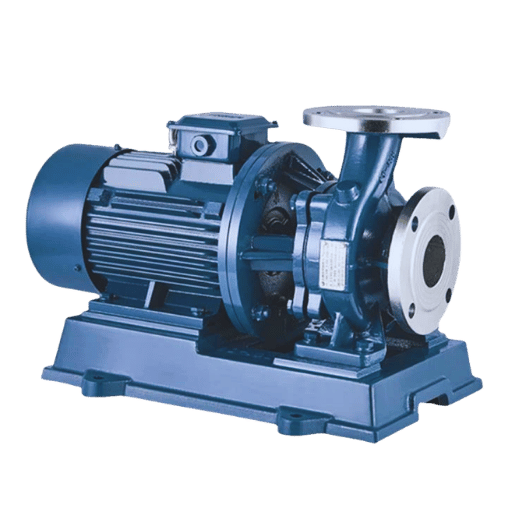

The Engineering Solution
Mag-Drive Elimination: Sealed containment shells with magnetic torque transmission eliminate dynamic seals and leak paths entirely.
Metallurgy Defense: Matching alloy PREN values to specific chemical chloride loads ensures long-term casing integrity.
“Field Validation: Mag-drive retrofits increase MTBF from months to multi-year cycles, validated on 24 BBP chemical service projects.”
“We watched a plant run through four 316 centrifugal replacements in 22 months on a seawater-chlorinated cooling loop. One Duplex 2205 mag-drive retrofit has now passed three years with zero seal calls. The material selection and the sealless design together did the job.”
— BBP Application Engineering Team, Beijing Beibangpu Co., Ltd.
BBP Stainless Steel Chemical Pump Portfolio — Engineering Grade Portfolio
Four series encompass the common envelope most process engineers encounter. Replacement spares and retrofit baseplates remain backwards compatible throughout the chemical industry.

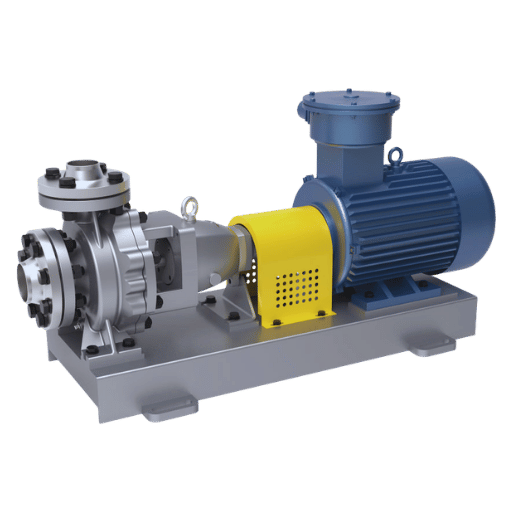

IH Series
ISO 2858 Centrifugal. Our performer with mildly corrosive fluids where sealing is reasonable.
Materials: 304 / 316 / 316L
Performance: 800 m³/h | 125 m Head
Temp: -20 °C to +120 °C
Performance: 800 m³/h | 125 m Head
Temp: -20 °C to +120 °C
MOQ 1 UNIT • 6-8 weeks
CZ Series
Mag-Drive Sealless. No seal, no leaks. Ideal for closed-loop hazardous material transfer.
Materials: 316L / 2205 / 2507
Performance: 200 m³/h | 80 m Head
Bearings: PTFE / SiC
Performance: 200 m³/h | 80 m Head
Bearings: PTFE / SiC
MOQ 1 UNIT • 8-10 weeks
ZA Series
Self-Priming Stainless. Priming from 5 m. Suitable for drums and rail car unloading.
Materials: 304 / 316
Performance: 150 m³/h | 50 m Head
Feature: Dry-running capable
Performance: 150 m³/h | 50 m Head
Feature: Dry-running capable
MOQ 1 UNIT • 7-9 weeks
CQB Series
Low-Flow Mag-Drive. Accurate metering and high-precision reactor-feed applications.
Materials: 316L / Hastelloy
Performance: 40 m³/h | 60 m Head
Cert: ATEX II 2G available
Performance: 40 m³/h | 60 m Head
Cert: ATEX II 2G available
MOQ 1 UNIT • 9-11 weeks
Stainless Steel vs Plastic-Lined vs Polymer-Coated Iron — 5-Year TCO Breakdown
Long-term cost efficiency in chemical processing is driven by material integrity. While plastic-lined or coated units offer lower upfront costs, the risk of fracture, weeping joints, and pinhole corrosion leads to full unit replacement within 18-36 months.
Lifecycle Realities
- Mechanical Seal Risks — 1.00× relative cost but frequent change-over cycles.
- PFA-Lined Failure — Entire pump replacement required once lining fractures.
- Polymer Coating — Pinholing around welds exposes iron substrate in < 3 years.
Financial Metric
Mag-drive units reduce 5-year maintenance costs by 25-40% relative to comparable mechanically sealed units.
Engineering Fit Guide
SS316L Mag-Drive: Dominates reliability-flagging applications in closed-loop corrosive duty with zero leak paths.
Limit Notice: For hydrofluoric acid (>40%) or hot chlorinated solvents (>90°C), BBP recommends specialized lined pumps over SS selection.
“TCO Advantage: 5-8 year service life vs 1.5-3 years for coated iron baselines.”
“The structural fix for seal-related downtime is removing the seal itself. Material selection and sealless design together ensure multi-year periods between failures.”
Primary: Plant Manager / Engineer
Client Outcomes — How Material & Seal Upgrades Extended Pump MTBF from 18 to 84 Months Across Three Industries
Three recent deployments show what the combination of correct alloy choice and mag-drive sealing looks like in the field. Numbers below are from BBP after-sales audit records; industries are identified at the segment level to respect the NDAs in place.
1. Pharmaceutical API manufacturer — Sodium hypochlorite dosing train
Before
316 centrifugal pumps, mechanical seal — failures every 11–14 months from chloride-driven pitting at the seal faces and eye of the impeller.
Retrofit
BBP CZ-series 2205 Duplex, mag-drive, PTFE secondary containment.
Outcome
42 months and counting, no seal calls, no impeller replacements. Downtime for scheduled bearing inspection at month 36 took 4 hours versus the previous 22-hour seal swap.
2. Food & beverage — CIP return loop, 40 °C caustic at pH 12
Before
304 end-suction pump on a third-party skid, 18-month replacement cycle from stress-corrosion cracking at a weld HAZ.
Retrofit
BBP IH-series 316L with controlled ferrite weld procedure and passivated internals to ASTM A967.
Outcome
28 months operation, zero cracking observed on quarterly borescope. CIP cycle time unchanged; flow delivered at the same curve point as the original unit.
3. Surface-treatment plant — 20% sulfuric acid pickling tank transfer
Before
Polymer-coated cast iron, 15-month average life due to coating damage around the volute seam.
Retrofit
BBP IH-series 316L paired with a single cartridge mechanical seal rated for sulfuric service.
Outcome
84 months on the first installed unit. After this result, the customer standardised BBP 316L across five similar transfer positions in the same plant.
Primary: Procurement / Engineer
Certifications & Compliance — ANSI B73.1, ISO 2858, ISO 5199, PED 2014/68/EU, ATEX, CE Marking
ISO and ANSI compliance on a chemical process pump is non-negotiable — for the procurement team it is a gate item, and for the engineer it is the guarantee that spares and baseplates stay interchangeable across a plant’s twenty-year life. BBP pumps hold the certifications below, with certificate numbers and issuing bodies available on request.
ANSI/ASME B73.1-2020
- Dimensional compliance
- End-suction chemical process
ISO 2858:1975
- Metric dimensions
- End-suction centrifugal
ISO 5199:2002
- Technical specs
- Class II chemical pumps
ISO 9001:2015
- QMS
- Cert No. on request
CE / PED 2014/68/EU
- Module H
- For EU export
ATEX II 2G
- EU 2014/34/EU
- Ex-rated variants
NACE MR0175
- Sour-service materials
- Duplex/2507 variants
HI 14.6
- Hydraulic acceptance test
- Every BBP unit
Compliance is more than a certificate number. Every BBP pump comes with a traceable file: flow curve validated four points; NPSHr confirmed by suppression test, and a materials certificate linking the alloy heat number against the supplier’s mill cert. This certification package is the one document the plant auditor actually reads; we insure it is a complete package—not a promise.
Request Full Compliance Documentation PackPrimary: ProcurementManager
Procurement Guide — Pricing Factors, Lead Time, FOB/CIF, Payment Terms, Warranty
A stainless chemical pump is a configure-to-order product. Published list prices do not exist when the same model number can vary by 3, final price once alloy, seal, flange rating, impeller trim, and driver voltage are specified. Below is a factor framework your procurement team can employ to establish a budgetary estimate prior to requesting a firm quotation.
What drives the quoted price
Alloy grade
— the single largest factor. 316L adds 25 to 35 percent over 304; duplex 2205 adds 50 to 80 percent; super duplex 2507 adds 120 to 180 percent.
Sealing architecture
— Mag drive typically bears a thirty to forty-five percent premium over the mechanical seal but eliminates the costly seal recycle line item over five-year life.
Hydraulic trim and impeller material
— low-flow, high-head trim and solid alloy impellers (versus bronze fitted) can add cost and delay delivery.
Certification scope
— PED Module H, ATEX, NACE sour service each entail additional inspection and documentation.
Driver package
— Bare-shaft versus close-coupled motor, IE3/IE4 efficiency, explosion proof Exd enclosures, VFD ready windings.
Procurement Parameter
BBP Standard Terms
MOQ
1 unit (single-piece order accepted)
Lead time — IH & ZA series
6–9 weeks FOB Tianjin after drawing approval
Lead time — CZ & CQB mag-drive
8–11 weeks FOB Tianjin
Incoterms offered
FOB Tianjin / CIF Hamburg / CIF Rotterdam / CIF Long Beach / DDP on request
Payment terms
30% T/T deposit, 70% against B/L copy; L/C at sight for orders > USD 50k
Warranty
24 months from commissioning or 30 months from B/L date, whichever is earlier
Spare parts
Mechanical seal, bearing kit, O-ring set stocked ex-warehouse for common sizes; 10-year parts availability commitment
Commissioning support
Remote engineering call included; on-site support available on quotation
Stainless Steel Engineering Decision Support
Eliminate specification errors and financial waste. Use our proprietary technical tools to select the correct alloy grade and calculate the verified long-term savings of sealless mag-drive architecture.
Stainless Steel Grade Selector
Navigate the PREN values of 304, 316L, and Duplex 2205. Input your chemical concentration and chloride levels to find the immunity threshold for your pump casing and impeller.
Open Grade Selector →Mag-Drive TCO Calculator
Compare CAPEX vs. OPEX. Calculate the 5-year Total Cost of Ownership by factoring in seal-replacement labor, batch-loss risk, and power consumption relative to traditional mechanical seals.
Calculate Lifecycle ROI →Engineer FAQ — 8 Questions Before You Specify Your Stainless Steel Chemical Pump
The short rule: 304 works for chloride below 50 ppm and mild inorganic acids; 316 handles up to roughly 500 ppm chloride and most dilute acids; 316L is the welded-fabrication version of 316 and prevents intergranular attack in the heat-affected zone; Duplex 2205 doubles both the pitting resistance and the yield strength versus 316L.
Specify Mag Drive if chemicals are hazardous, if your plant has a zero-leak policy, or if seal changes are eating into your maintenance budget. Mechanical Seal remains correct when solids content exceeds mag drive bushing limits, when head/flow exceeds mag drive maxima, or when operation is intermittent.
NPSHr is a pump curve property read from the manufacturer’s chart. NPSHa is calculated: Atmospheric Pressure + Static Suction Head – Vapour Pressure – Suction Line Losses. The rule of thumb is NPSHa ≥ NPSHr + 0.5 m margin (1 m+ for high-temp service).
316L is typically a 25-35% premium over 304. It is essential for chloride service >50ppm or hot-worked welded repairs. It is not necessary for freshwater CIP or food rinse where 304 offers a lower total cost of ownership.
ANSI B73.1 is a dimensional standard. Compliance ensures mounting, shaft, and flange patterns match, making retrofits seamless regardless of brand. We provide full certification and mill certs in every quote package to verify metallurgy and efficiency.
MOQ is 1 unit. Lead times: IH/ZA Series (6-9 weeks), CZ/CQB Mag-Drive (8-11 weeks from drawing approval). Hard delivery dates are established against firm Purchase Orders.
Yes. Roughly 35% of production is OEM/ODM, working to customer drawings, specific flange patterns, or private label requirements. Our vertical integration keeps lead times to 6-10 weeks versus the industry standard of 20+.
Our curves are based on internal HI 14.6 certification, not generic catalog data. Derived from 24 chemical service projects (20-98% sulfuric acid, hypochlorite, CIP), we ensure your spec matches field-validated performance.
