Booster & Pipeline Pumps: Selection Guide for Engineers and Buyers

Booster & Pipeline Pumps fill the gap between ordinary transfer duty and fully designed pump-station systems. Modern pipeline buyers are no longer just asking for a pump; they are asking for reliable pressure, enough flow at the duty point, achievable suction conditions, and a system that does not turn maintenance troubleshooting into a constant site problem.

For industrial water supply, HVAC loops, municipal pressure zones, tank transfer, refinery service, and compatible liquid movement, the correct pump choice starts with the system. Pump curve data by itself is not sufficient. Total dynamic head, pipe friction, suction head, fluid temperature, fluid material, motor rating, and control system all may determine if the installed pump will run near its designed point.

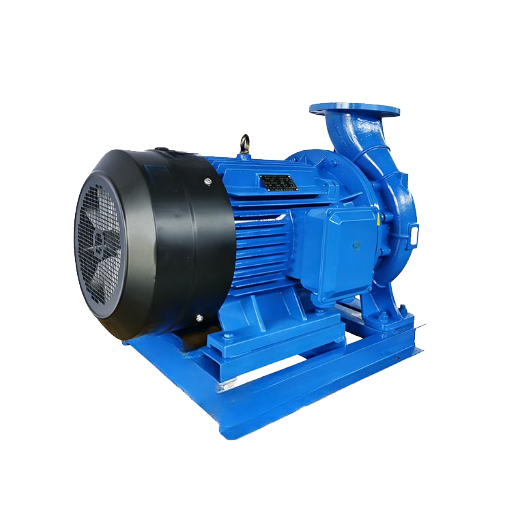

What Are Booster & Pipeline Pumps?

In pipeline or closed loop fluid transfer piping, a booster pump provides increased pressure where existing pressure is not enough to deliver the needed flow rate, elevation, terminal pressure, or process parameters. Selection of a pipeline pump begins with pipe hydraulics: flow rate, pipe friction, elevation change, inlet conditions, and site pressure target.

What level of intent creates the everyday reality? Transfer pumps simply transfer liquids from source to destination. Pipeline booster pumps are almost always installed because the pipeline system already has a flow requirement but now needs help with its pressure profile at a certain location. This location might be downstream of a long pipeline, upstream of a heat exchanger, at a municipal pressure zone, between tanks, or ahead of process equipment that require a steady inlet pressure.

What is the purpose of a booster pump?

The point is to bump pressure in a network of pipes and equipment without redesigning the entire line. In a clean-water system that might be ensuring fixtures or process users are provided with a minimum pressure. In an industrial system, it might be overcoming pipe friction, keeping a central tank transfer meeting demand, or providing a steady feed to a sensitive process load.

For the B2B buyer, the question is not “Do we need a booster?”. It is “Where does pressure break down and which pump design solves that problem with the least hydraulic risk?”

Quick Specs and Inputs Before Selection

In the U.S. Department of Energy’s Improving Pumping System Performance sourcebook, pump operation rests on the relationship between the pump curve and the system curve. That is important because the selected pump must fit not only the duty point listed in a catalog but the pipe network that will supply that duty point.

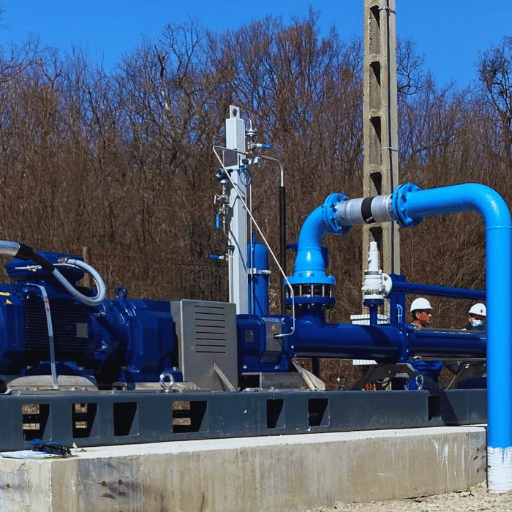

Advantages and Limits of Booster Pipeline Pumps

Pipeline booster pumps are serviceable because they address a specific hydraulic shortfall in an otherwise larger system. They may be fit into existing piping, combined with other pressure controls, combined with other pumps, or specified as part of a commercial booster station. The fundamental limitation is that they cannot tune up bad system conditions.

6-Input Booster Pump Fit Matrix

Use this table before price comparisons. It isolates selection issues that can be easily confused in an RFQ: hydraulic duty, suction margin, liquid, layout, control, and accessibility.

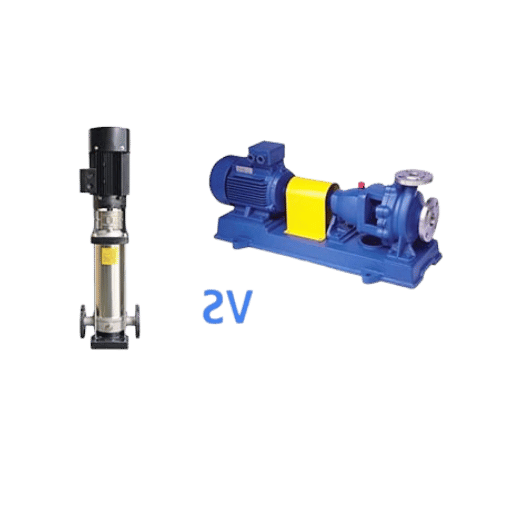

Inline Pump vs Horizontal Pipeline Pump

Inline pumps keep suction and discharge on one pipe axis. This configuration is enticing when space is at a premium and the system involves relatively clean liquids. Horizontal pipeline pumps may require less envelope for foundations, coupling and seal maintenance, but need space for flow balancing and equipment alignment.

What is the difference between a booster pump and a regular pump?

Transfer pumps are selected solely to move fluid. Booster pumps are selected to boost head at a specific point in a pressure profile. When installing a booster, head pressure, downstream pressure setpoint, control response, and pipe head friction all become more important factors.

Choose inline when hard-piped flow is tight and the liquid is clean, and motor access is still practical. Choose a horizontal pipeline when maintenance access, shaft alignment checks, baseplate mounting, or pump size outweigh space considerations. If the head rise is substantially higher than a single-stage pump can produce, lean toward a multistage booster instead of choosing the wrong casing style.

“A booster is well chosen on the suction side. No matter how many stages, if flow cannot enter the impeller with stable pressure and a clean flow, higher discharge head cannot solve the root problem.”

– BBP Application Engineering Team

When a Booster Station Beats a Single Pump

Single pump arrangements are straightforward and clean when the demand rate is predictable and unchanging. Booster stations are more attractive when the demand rate varies with shift, zone, batch size, or season. In those cases, the pump buyer is selecting a pressure-control system, not just a pump.

What are two types of pumps used in booster stations?

Two common variants are vertical multistage pumps and horizontal end-suction or split case style pumps, depending on flow rate, head requirement, service access needs and envelope. Inline pumps are another option for pipeline boosts on a compact piping layout involving filtered liquid.

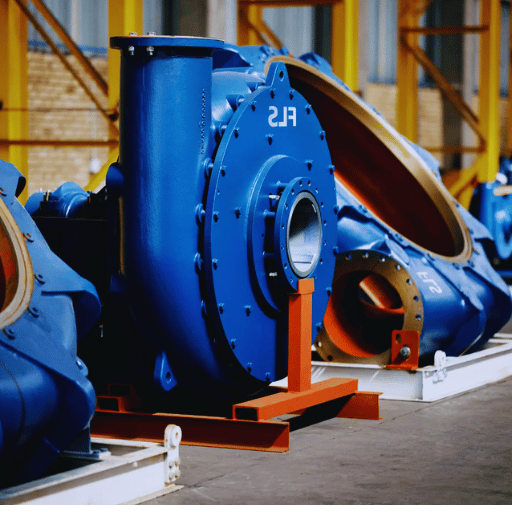

Materials, Liquid Type, and Service Conditions

Beijing Beibangpu Co., Ltd. is a Chinese producer of slurry pumps, submersible sewage pumps, water pumps, diesel water pumps, chemical pumps, pulp pumps. It possesses a facility that casts and heat-treats its products. For purposes of this article, that is an interesting manufacturing fact, not a justification for performance characteristics.

Materials selection need be based on the liquid rather than the catalog picture. Chlorides in water, chemical use dosing, hot liquids, crude oil, diesel, pulp or aggressive slurries can influence the material decision of the casing, impeller, shaft, seal, gasket and motor.

If the project uses a mixed service, such as hot water plus chemical treatment, do not use it to price a standard water booster pump. Send the liquid data and ask the pump supplier to confirm casing, material, impeller, and seal choices before the price is fixed.

Injection Pump or Pipeline Booster Pump?

In oil and gas service, a pipeline booster can sit near a production site or tank farm, move liquid from tank farms to refineries, or support jet fuel transfer. Do not treat that duty as a generic pressure pump or injection pump. High pressure duty, automatic control, and pipeline design constraints need a separate review before material, seal, and motor choices are fixed.

RFQ Checklist for Engineers and Procurement Teams

Strong RFQs save time because they replace the vague question “How much is a booster pump?” with a duty description that an application engineer can check. For booster and pipeline pump selection, include these 10 points.

1. Flow at normal, minimum, and maximum operation.
2. Total dynamic head or inlet/outlet pressure target.
3. Suction pressure, suction tank level, and suction pipe length.
4. Liquid name, temperature, SG, viscosity, pH, solids, corrosion data.
5. Preferred material or known material restrictions.
6. Voltage, frequency, motor enclosure, and site power limits.
7. Control mode: fixed speed, VFD, pressure, level.
8. Installation layout, pipe orientation, foundation, and access limits.
9. Certification, inspection, testing, or document package requirements.
10. Required delivery window, spare parts, and after-sales support expectations.

Standards and Numeric Checks Before Approval

Standards are not one-size-fits-all. ISO 9906 is relevant when hydraulic performance acceptance testing is specified. API Std 610 appears in refinery, petrochemical, and natural gas pump specifications. ASME B31.3 is a piping-code reference when the booster is part of a process piping system. ANSI/HI 9.6.1 is useful when the discussion turns to NPSH margin. Name the required standard in the RFQ instead of asking every supplier to guess the inspection basis.

For a standards-aware review of BBP booster and pipeline pumps, give numeric limits as ranges, not only a single best-case duty point. The table below is a quote-readiness format, not a promise that one pump model covers every value shown.

Useful add-ons include a 12 m suction pipe run, 25 ft elevation difference, 18 A motor current, 30 m cable run, 4 hours minimum-run window, 2 years spare-parts horizon, 460 V panel supply, 60 Hz motor frequency, and 15 kW installed motor limit. These are example data formats for an RFQ package, not fixed ratings for every pump.

When these fields are known, the booster pipeline pump RFQ review becomes a technical match exercise instead of a low-price comparison. Missing numbers usually push suppliers toward cautious oversizing, and oversizing often creates a more expensive pump to buy and operate.

Lifecycle Cost: Energy, VFD Control, and Maintenance

DOE’s Variable Speed Pumping guide reports that pumping accounts for almost 20% of the world’s electric-motor energy use and 25% to 50% of total electrical energy use in some industrial facilities. Purchase price is not the only choice for a booster pump system.

Variable speed is not a miracle. It helps when demand changes and the system is otherwise wasting energy through throttling, bypass, or operation far from the best point on the curve. If duty is fixed, a well-selected fixed-speed pump may still be the best way to go.

DOE’s Variable Frequency Drive Evaluation Protocol notes that VFD savings estimates require operating data such as flow, pressure, and motor speed. In the end, the business case relies on the load profile, not the VFD nameplate.

2026 Outlook: Efficiency-First Pump Selection

IEA’s Energy Efficiency 2025 industry analysis says that industry uses nearly 40% of all final energy consumed, and motor systems such as pumps and compressors are part of industrial efficiency work. For 2026 pump procurement, energy data becomes a commercial requirement, not just an engineering afterthought.

Expect more buyers to request curve data, motor efficiency, VFD suitability, material traceability, and test documentation at the RFQ stage. A manufacturer able to explain duty point, NPSH, liquid, material, and control mode will be easier to assess than a manufacturer only able to give a price.

NREL’s Pump System Assessment Guidelines indicate the types of site data that support better selection: drawings, pump engineering tables, flow, impeller size, motor voltage and amp readings, VFD control status, and valve leakage. These data also help a manufacturer quote the right booster pump instead of guessing.
